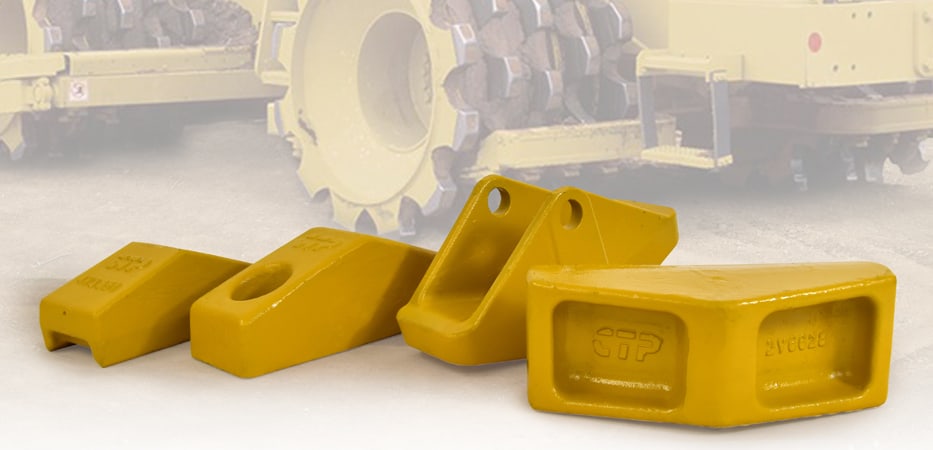

Tamping Feet
The CTP replacement tamping feet for the 815/825/835 series compactors provides greater pressure, more compaction, smooth ride, and excellent traction. Rugged construction delivers superior performance and reliability in the toughest conditions for high soil compaction and productivity.
| Picture | Part No. | Application | Machine Model | Base | Bolts | Nuts | Washer |
|---|---|---|---|---|---|---|---|
|
|
4V3851 |
Weld-On |
815 |
7K6908 |
N/A |
N/A |
N/A |
|
|
8K9189 |
Bolt-On |
815 |
7K6908 |
0S0484 (2) |
6B6684 (2) |
5P8245 (4) |
|
|
2V7053 |
Weld-On |
815B |
7K6908 |
N/A |
N/A |
N/A |
|
|
7K2939 |
Pin-On |
824B |
9S1645 |
N/A |
N/A |
N/A |
|
|
2V6628 |
Weld-On |
825C |
7K7071 |
N/A |
N/A |
N/A |
|
|
2V6628 |
Weld-On |
825C |
7K7071 |
N/A |
N/A |
N/A |
|
|
8K9171 |
Bolt-On |
825C |
7K7071 |
0T0856 (2) |
6B6682 (2) |
5H1504 (4) |
Cleaner Bar
CTP cleaner bars keep drums free of impacted soil regardless of rolling direction, maximizing efficiency.
| Picture | Part No. | Application | Machine Model | Bolts | Nuts | Washer |
|---|---|---|---|---|---|---|
|
|
1062047 |
Bolt-On |
815B Compactor |
3B6753 (8) / 1D4620 (8) |
2J3506 (16) |
2S0115(32) |
*Other part no. not included in the list are available. Please contact your sales representative if you have any questions.
Part Numbers are used for reference purposes only.
