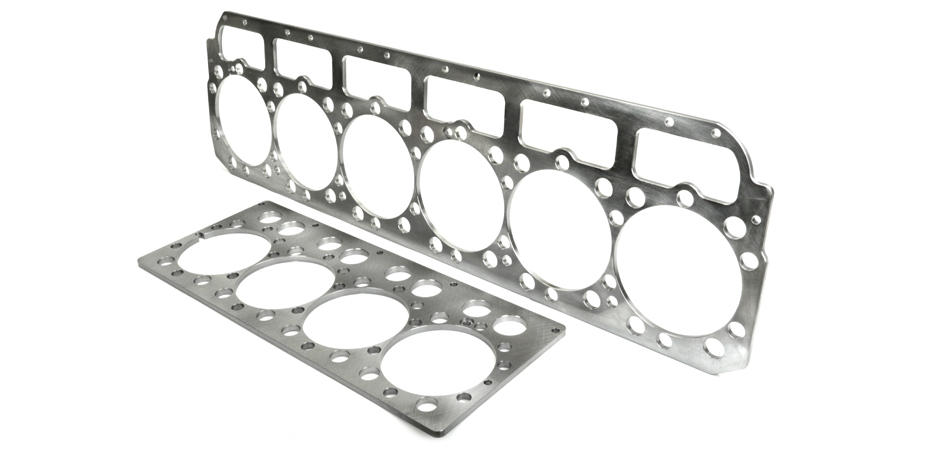

Engine block spacer plates were designed to reduce stresses on the liner flange, which could cause it to get cracked. The spacer plate is just a few thousands of an inch thinner than the liner flanges, this ensures the correct liner protrusion and guarantees proper head gasket sealing.
A new spacer plate should always be used when overhauling your engine, or whenever the cylinder head is removed. It is an inexpensive assurance that your engine will be sealed properly.
| Part No. | Engine Model |
|---|---|
| 7N8021 | 3304 |
| 8N3663 | 3304 |
| 7N7998 | 3306 |
| 8N3659 | 3306 |
| 6I2981 | 3406 |
| 6I4613 | 3408 |
| 2253100 | 3412, 3412E, C27, C32 |
| 2603904 | 3508, 3512 |
| 1106994 | 3516, 3512C |
| 6I4421 | C15, C18, 3406 |
| 7N3352 | D342 |
| 2P1215 | D343 |
| 7N3032 | D9H, D353 |

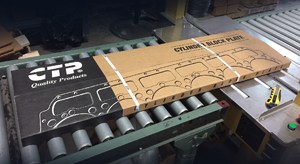

CTP has many new spacer plates available in stock.
* Other part no. not included in the list are available. Please contact your sales representative if you have any questions.
Part Numbers are used for reference purposes only.
