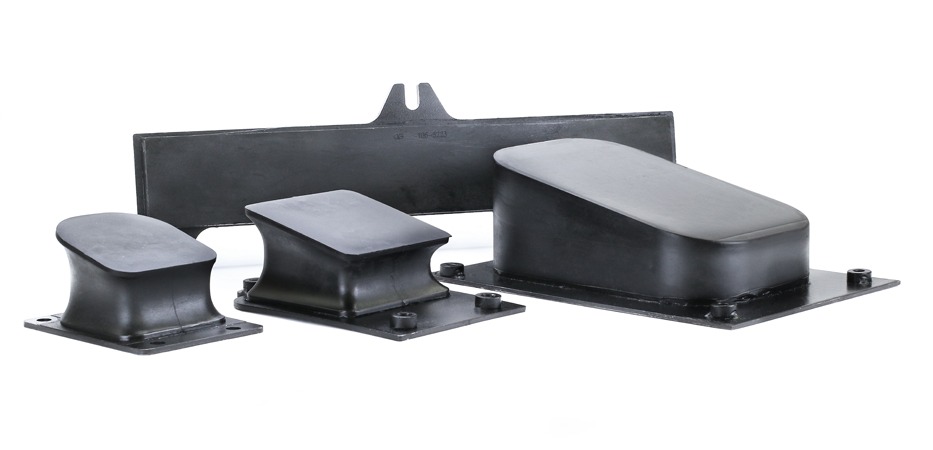

CTP Pad Assemblies –
CTP isolation pads decrease vibration and noise transmission, therefore significantly reducing the harmful effects of vibration that may cause serious impairment to workers and the overall effectiveness of the equipment.
• Pads are resistant to oil and solvents
• Isolate vertical and horizontal forces
• Control vibration, shock and noise
• Extend life of equipment
| Part No. | Description | Machine |
|---|---|---|
| 1068223 | PAD A W/OUT SHIM | AD40, AD45, 769/B, 769C, 771C/D, 773B/D, 775/B |
| 1642465 | PAD | 12G/H/H NA/H ES, 14G/H/H NA, 16H/H NA, 120G/H/H NA/H ES, 130G, 135H/H NA, 140G/H/H NA/H ES, 143H, 160H/H NA/H ES, 163H/H NA |
| 2136184 | PAD AS. | D11T, D11R |
| 2136185 | PAD AS. | D11T, D11R |
| 2136186 | PAD AS. | D11T, D11R |
| 2137322 | PAD AS. | D9L, D10R, D10T |
| 3P2482 | PAD A | D11N, D11R |
| 3P4369 | PAD | D7G |
| 3T3815 | PAD | D9H |
| 6P4327 | PAD | D7F, D7G, D7H |
| 6T0952 | PAD | D8H, D8K |
| 6T0956 | PAD | D6C, D6D, D6D SR, D6F DR |
| 6T0960 | PAD | D7F, D7G |
| 6T8907 | PAD A | D6C, D6D, D6D SR, D6F DR |
| 6Y7795 | PAD A | D7H |
| Part No. | Description | Machine |
|---|---|---|
| 6Y7796 | PAD A | D7H |
| 6Y9508 | PAD AS | D8N, D8R, D8R II, D8T |
| 6Y9509 | PAD AS | D8N, D8R, D8R II, D8T |
| 7G2704 | PAD A | D9L, D10R, D10T |
| 7T4700 | PAD A | D8N, D8R, D8R II, D8T, VFS50, VFS70 |
| 7T5419 | PAD A | D9N, D9R, D9T, 574 |
| 7T5510 | PAD A | D8L, 578 |
| 7T5959 | PAD ASSY | D9L, D10N, D10R, D11N, D11R, 589 |
| 8G8378 | PAD A | 943, 953 |
| 8P2697 | PAD | D9E, D9G |
| 8Y8679 | PAD A | D6R, 416B/C, 426B/C, 436B/C, 446B |
| 9G1696 | PAD A | D8L, D9N, D9R |
| 9G1697 | PAD A | D8L, D9N, D9R |
| 9P4200 | PAD ASSY | D8H, D8K |
| 9P8212 | PAD | D9H |
| 9W7599 | PAD A | D11R |
| 9W7800 | PAD A | D11R, D11N |
* Other part no. not included in the list are available. Please contact your sales representative if you have any questions. Part Numbers are used for reference purposes only.
