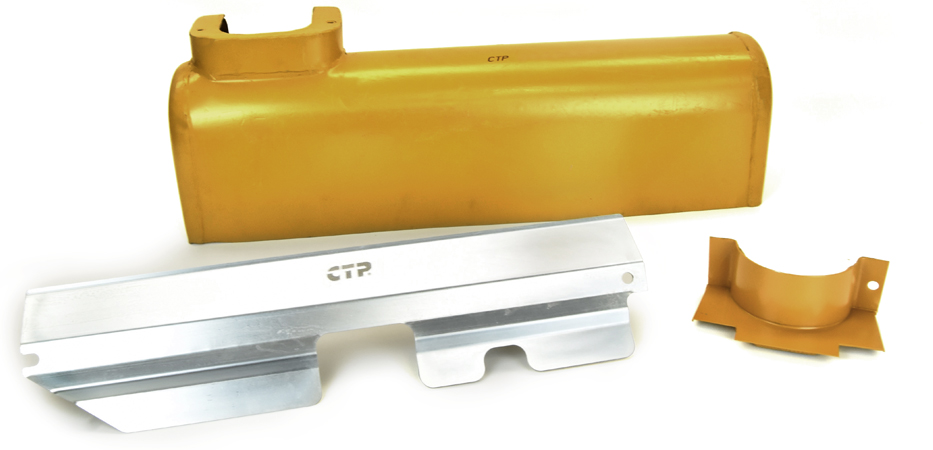

CTP thermo-laminated heat shields absorb the excesive heat produced by the engine and protect heat sensitive components in the machine.
| Part No. | Description | Machine Model |
|---|---|---|
| 1035419 | SHIELD A | 120H, 135H, 140H, 143H, 160H |
| 1W7546 | SHIELD-HEAT | 160G |
| 1140915 | SHIELD AS | 631E, 631G, 633, 637G |
| 1140917 | SHIELD AS | 631E, 631G, 633, 637G, D9R |
| 1265057 | SHIELD AS | 631E, 631G, 633, D9R |
| 8N1620 | SHIELD AS | 631E, 657E, D8L |
| 8N1622 | SHIELD AS | 631E, 657E, D8L |
| 1N3300 | SHIELD AS | 631E, 657E, D9R, D10 |
| 8N1594 | SHIELD AS | 631E, 657E, D9R, D10 |
| 8N1616 | SHIELD | 631E, 657E, D9R, D10 |
| 8N1619 | SHIELD | 631E, 657E, D9R, D10 |
| 1265056 | SHIELD AS | 631E/G, 633E, 637G, 651E, 657E, D10R, D9R |
| 8N2258 | SHIELD | 637G, 657E, D9R |
| 8N2368 | SHIELD AS | 637G, 657E, D9R |
| Part No. | Description | Machine Model |
|---|---|---|
| 1309117 | SHIELD AS | 651E, 657E, D10R |
| 1W6183 | SHIELD AS-MANIFOLD | 651E, 657E, D9L, D10 |
| 1W6184 | SHIELD | 651E, 657E, D9L, D11 |
| 1W6185 | SHIELD AS | 651E, 657E, D9L, D12 |
| 1W6186 | SHIELD | 651E, 657E, D9L, D13 |
| 8G7194 | SHIELD AS | 943, 953 |
| 1W0460 | SHIELD AS – RH | 990, 992C, 992D |
| 1W0464 | SHIELD AS – LH | 990, 992C, 992D |
| 1W0466 | SHIELD AS – LH | 990, 992C, 992D |
| 1W0458 | SHIELD AS – RH | 990, 992C, 992D |
| 4N9587 | SHIELD | D4E, D5E |
| 4P3306 | SHIELD-HEAT | D6R, 160G, 966F |
| 1W6299 | SHIELD AS – LH | D9L |
| 1268525 | SHIELD AS – LH | D9R |
* Other part no. not included in the list are available. Please contact your sales representative if you have any questions.
Part Numbers are used for reference purposes only.
