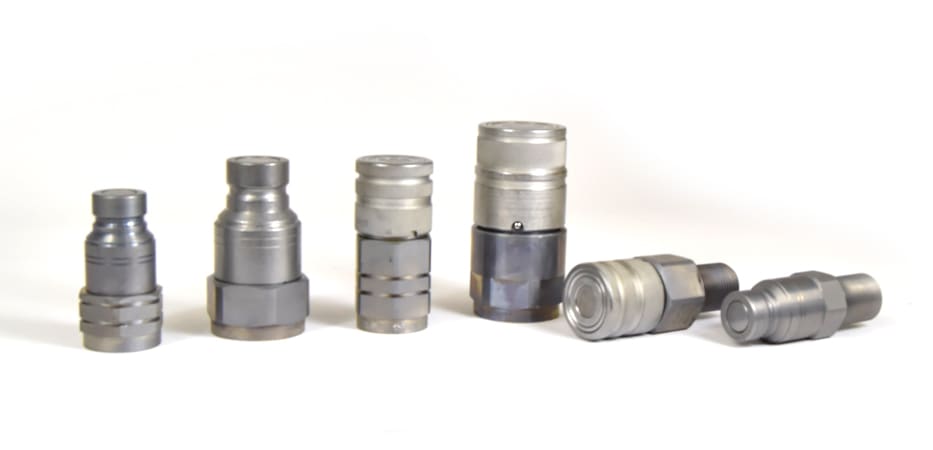

The CTP new Flush Face Quick Disconnects offer leak free performance in high-pressure environments and other applications. They are made from carbon steel and are zinc plated to keep from corrosion.
Some additional features include:
– Safety lock to help prevent from accidental disconnection
– Fitted seal to provide minimal or no inclusion of contaminants during connection
– Their flat face design prevents fluid loss while disconnected
– Bidirectional flow
– Ease to clean
The most popular applications for the Quick disconnects (couplers) are:
– Hammer circuits
– High-pressure pulse applications
– Leak free environments
– Construction, mining and agricultural industries
| Part No. | Couple Size | Thread Size | Type | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1060401 | 19 | 1-5/16-12 | Female | ||||||||||||||||
| 1060406 | 19 | 1-5/16-12 | Male | ||||||||||||||||
| 1532994 | 12 | 7/8-14 | Female | ||||||||||||||||
| 1532995 | 12 | 7/8-14 | Male | ||||||||||||||||
| 1938334 | 12 | 1-14 | Male | ||||||||||||||||
| 1938335 | 12 | 1-14 | Female | ||||||||||||||||
| 1956525 | 12 | 1-1/16 – 12 | Female | ||||||||||||||||
| 1956526 | 12 | 1-1/16 – 12 | Male | ||||||||||||||||
| 2416189 | 12 | Bulkhead | Male | ||||||||||||||||
* Other part no. not included in the list are available. Please contact your sales representative if you have any questions.
Part Numbers are used for reference purposes only
