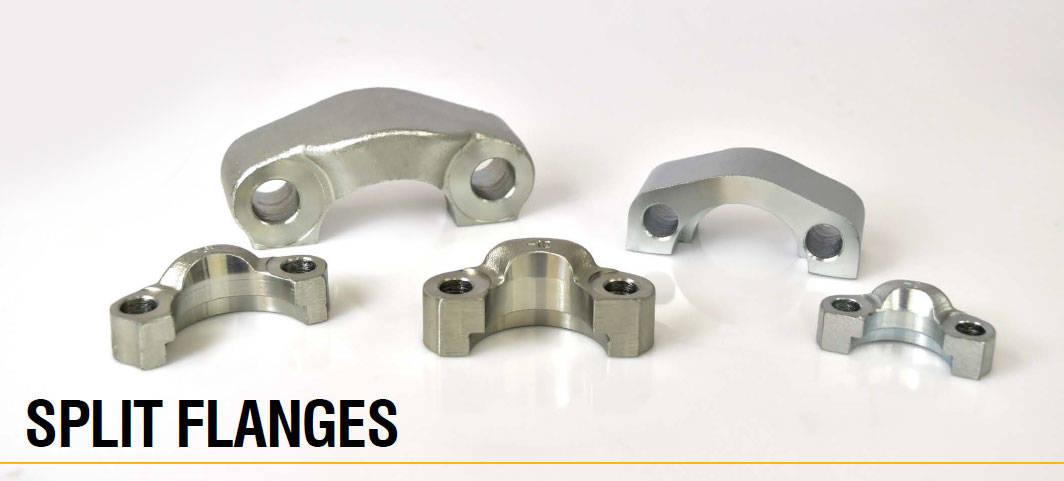

Split Flanges
Flanges are connections used in fluid power systems. Code 61 flanges are referred to as standard. They are used for high pressure between 3000-5000 PSI depending on the size. Code 62 flanges are rated for 6000 psi for all sizes.
SPLIT FLANGE HALF CODE 61
| Part No. | Split Flange 1/2 |
|---|---|
| 1P4574 | 1/2 |
| 1P4576 | 3/4 |
| 1P4577 | 1″ |
| 1P4578 | 1-1/4 |
| 1P4579 | 1-1/2 |
| 1P4582 | 2″ |
| 1P4585 | 4″ |
| 6V0397 | Metric Bolts |
| 6V0400 | Metric Bolts |
| 8C3205 | Metric Bolts |
| 8C3206 | Metric Bolts |
SPLIT FLANGE HALF CODE 62
| Part No. | Split Flange 1/2 |
|---|---|
| 1244287 | 3/4 |
| 1244288 | 1 |
| 2T3001 | 1-1/4 |
| 2T3000 | 1-1/2 |
| 1244289 | 2 |
THICK FLANGE HALF
| Part No. | Split Flange 1/2 |
|---|---|
| 1P5765 | 3/4 |
| 1P5766 | 1 |
| 1P5767 | 1-1/4 |
| 5P8077 | 1-1/2 |
* Other part no. not included in the list are available. Please contact your sales representative if you have any questions.
Part Numbers are used for reference purposes only.
