Cylinder Head Overhaul Kits for: C15, C16, C18 Truck Applications

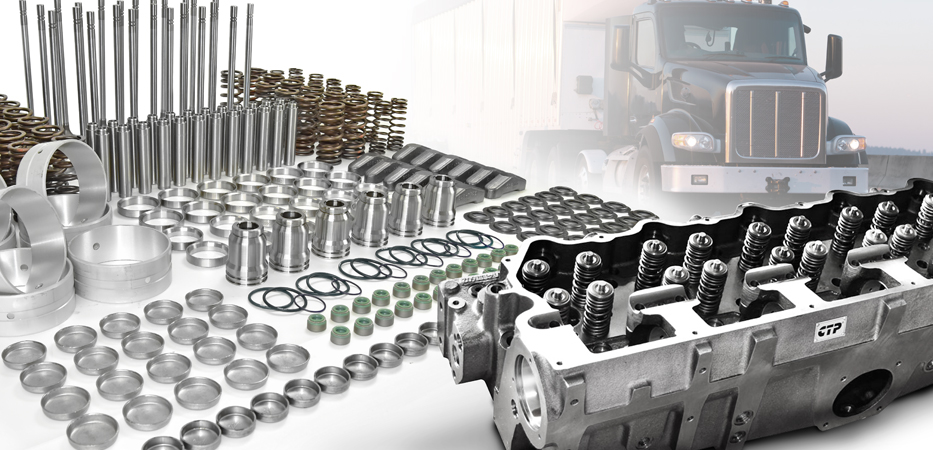

Our CTP complete cylinder head overhaul kits include all the necessary parts & components to overhaul a 223-9250, 263-5055 & 183-5296 truck cylinder head back to new condition. The CTP kits include: valves, valve seat inserts, valve guides, valve springs, rotocoils, seals, injector sleeves, valve bridges and more.
| Description | QTY |
|---|---|
| VALVE-INLET | 12 |
| VALVE-EXHAUST | 12 |
| INSERT-SEAT (INLET)(STANDARD) | 12 |
| INSERT-VALVE SEAT (EXHAUST)(STANDARD) | 12 |
| SPRING-VALVE (OUTER) | 24 |
| SPRING-VALVE (INNER) | 24 |
| ROTOCOIL AS | 24 |
| GUIDE-VALVE (STANDARD) | 24 |
| SEAL-VALVE STEM | 24 |
| WASHER-SPECIAL | 24 |
| LOCK-RETAINER | 48 |
| SLEEVE-INJECTOR | 6 |
| VALVE BRIDGE | 12 |
| SEAL-O-RING | 6 |
| SEAL-O-RING | 12 |
| CAM BUSHING (STANDARD) | 7 |
| PLUG-CUP | 17 |
| PLUG-CUP | 20 |
| PLUG-PIPE | 3 |
New kit numbers available:
2239250CHK
2635055CHK
1835296CHK
*Other part no. not included in the list are available. Please contact your sales representative if you have any questions. Part Numbers are used for reference purposes only
