Excavator Buckets

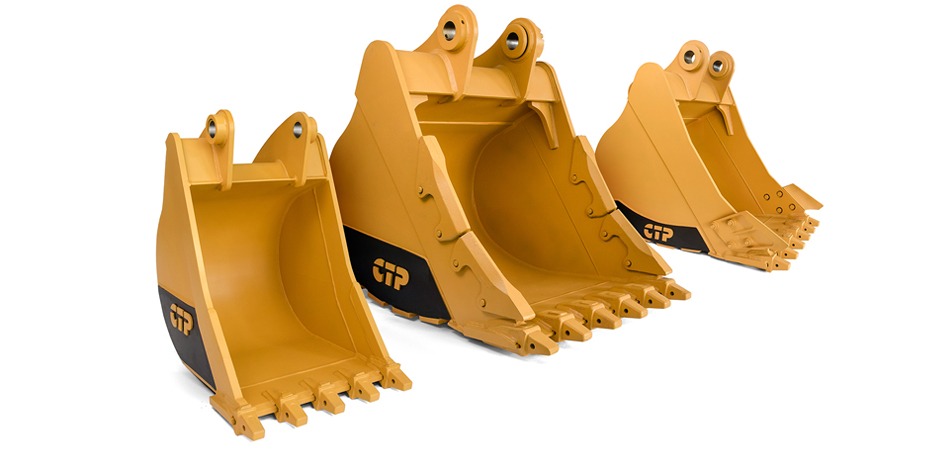

CTP Heavy Duty Buckets are specially engineered for excavating in the harshest conditions. Designed for digging in various materials, including dirt, clay, rock, and high abrasive applications. The Q355 high-strength steel shell increases strength for supporting stress and heavy loads. With a yield strength of 345 MPa (megapascal) and a tensile strength of 450 Mpa. Q355 steel offers outstanding longevity, performance, and stability.

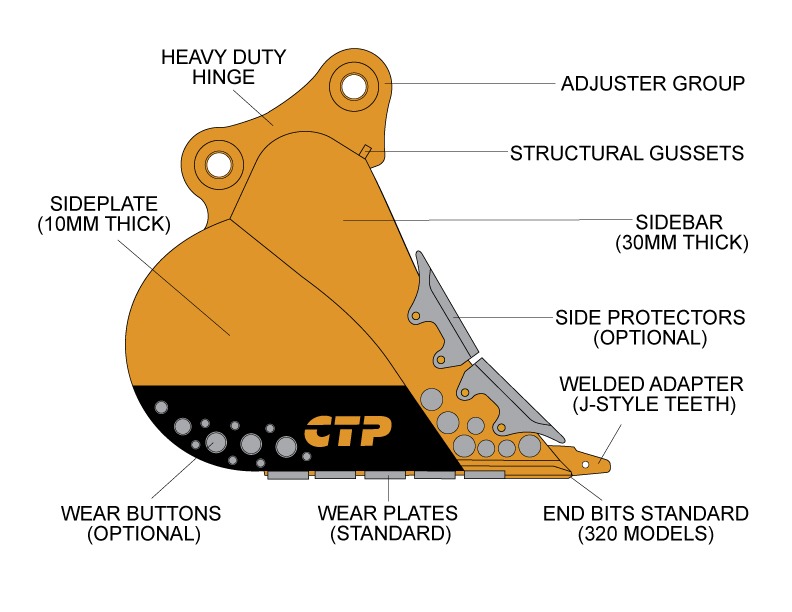

FEATURES INCLUDE:
• Designed with heavy-duty Q355 high strength structural steel
• Included with standard Adapters for J Series Style Teeth
• Bottom wear pads are standard
• End Bits included on the 320 buckets
• Optional Bucket Side Bar Protectors
• Optional Sidecutters Wear Pads
• Optional Wear Buttons and Chocky Bars available
CTP416ST-420ST
| Part No. | Capacity | Weight | Adapters |
|---|---|---|---|
| CTP-416-ST-12 | 0.08 | 141.9 | 6Y3224 |
| CTP-416-ST-18 | 0.12 | 166.9 | 6Y3224 |
| CTP-416-ST-24 | 0.18 | 186.5 | 6Y3224 |
| CTP-416-ST-30 | 0.23 | 211.5 | 6Y3224 |
| CTP-420-ST-12 | 0.08 | 141.9 | 6Y3224 |
| CTP-420-ST-18 | 0.12 | 166.9 | 6Y3224 |
| CTP-420-ST-24 | 0.18 | 186.5 | 6Y3224 |
| CTP-420-ST-30 | 0.23 | 211.5 | 6Y3224 |
CTP320-ST
| Part No. | Capacity | Weight | Adapters | End Bits | End Bits |
|---|---|---|---|---|---|
| CTP-320-ST-18 | 0.34 | 609.3 | 6Y3224 | 964747 | 964748 |
| CTP-320-ST-24 | 0.47 | 668.3 | 6Y3224 | 964747 | 964748 |
| CTP-320-ST-30 | 0.66 | 744.4 | 6Y3224 | 964747 | 964748 |
| CTP-320-ST-36 | 0.83 | 820.5 | 6Y3224 | 964747 | 964748 |
| CTP-320-ST-42 | 1 | 891.6 | 6Y3224 | 964747 | 964748 |
CTP320-HD
| Part No. | Capacity | Weight | Adapters | End Bits |
|---|---|---|---|---|
| CTP-320-HD-18 | 0.43 | 734.8 | 8J4310 | K320D |
| CTP-320-HD-24 | 0.59 | 814.8 | 8J4311 | K320D |
| CTP-320-HD-30 | 0.75 | 891.4 | 8J4312 | K320D |
| CTP-320-HD-36 | 0.92 | 968 | 8J4313 | K320D |
| CTP-320-HD-42 | 1.08 | 1059.6 | 8J4314 | K320D |
* Other part no. not included in the list are available. Please contact your sales representative if you have any questions. Part Numbers are used for reference purposes only.
