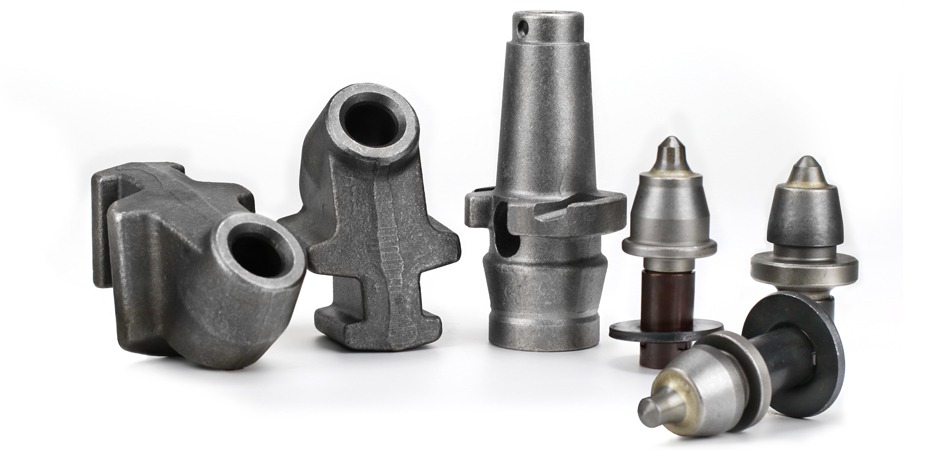

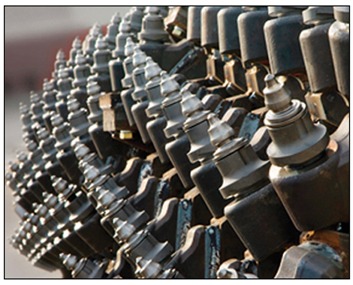

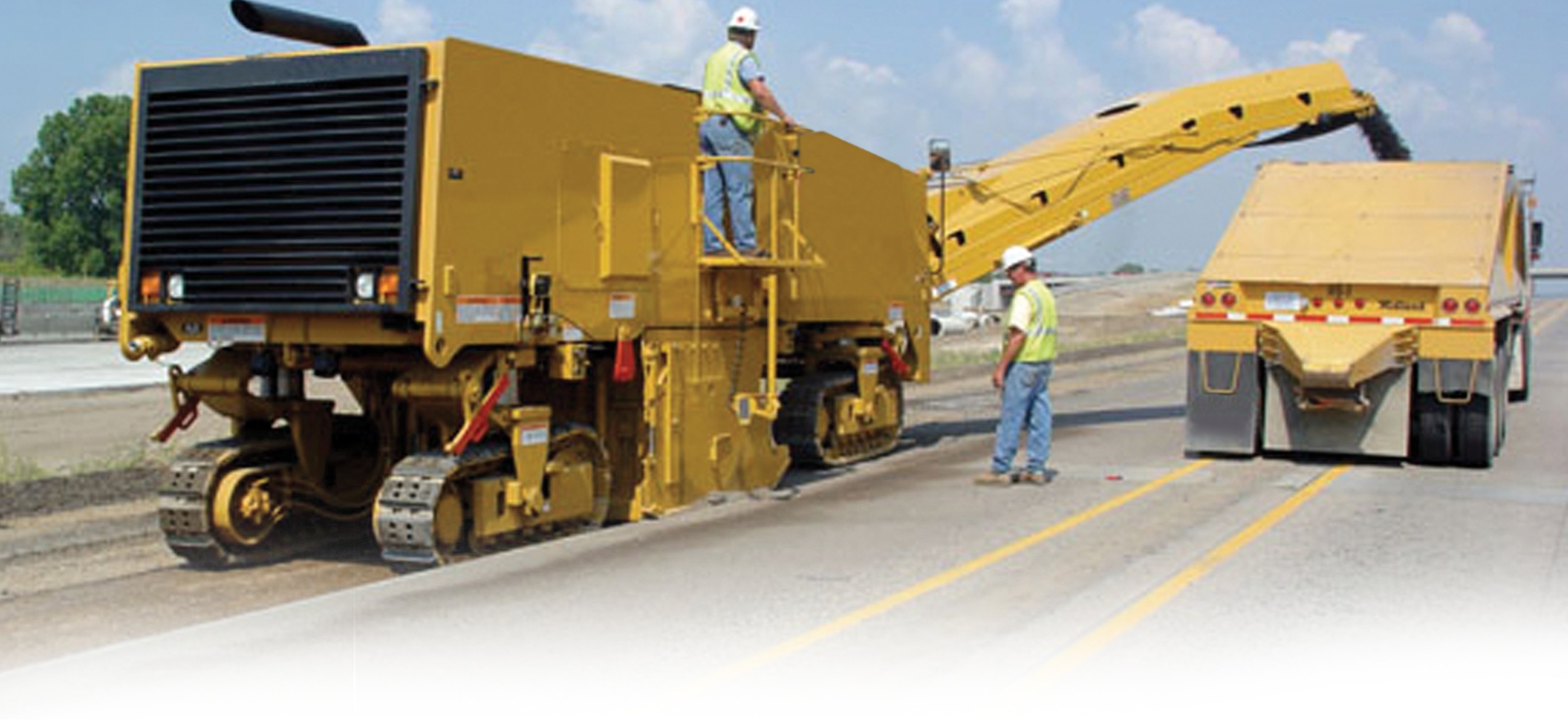

CTP Bit Cutters are created using a 4140 steel body and a tungsten carbide tip for high wear and impact resistance. Whether milling asphalt or concrete roads, our bit cutters offer outstanding fracture resistant toughness to keep your project running smoothly.
| Bit Cutter Part No. | Holder Part No. | Machine Models | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1402864 | 1519941 | PM-201, PM-465, PM-565, RM-250C, RM-350, RR-250, SS-250B | |||||||||||||
| 2227570 | 2414559 | PM310, PM312, PM313, PM620, PM622, PM820, PM822, PM825, RM-500 | |||||||||||||
| 2227571 | 4861915 | PM-201, PM310, PM-565, PM620, PM622, PM820, PM822, RM-500, T15, T6B, T9 | |||||||||||||
| 3507198 | 1519941 | PM-200, PM-201, PM310, PM620, PM622, RM-350B, RM-500 | |||||||||||||
| 1173884 | 1174076 | RM-250C, RM-300, RM-350B, RM-500, SS-250B | |||||||||||||
| 4153935 | 1519941 | PM-200, PM-201, PM310, PM-565, PM620, PM622, RM-300, RM-500 | |||||||||||||

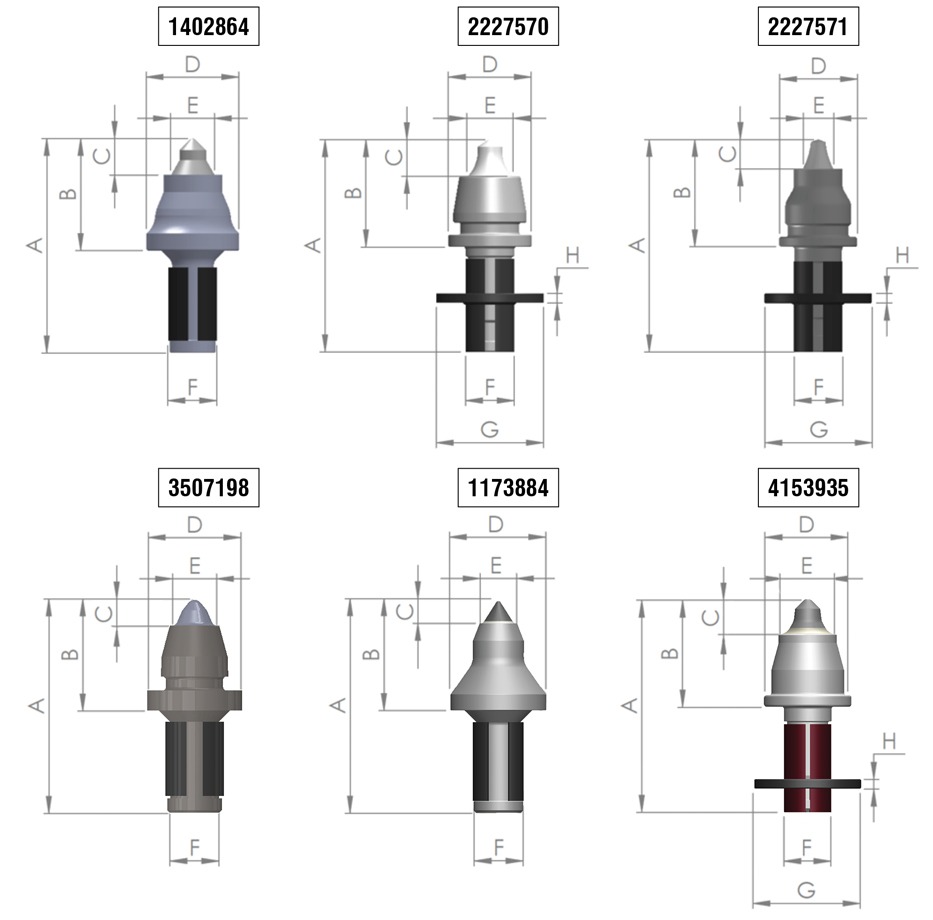

| Part No. | Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | ||
| 1402864 | 87 | 46 | 15 | 38 | 17 | 20 | — | — | |
| 2227570 | 88 | 45 | 16 | 34 | 17 | 20 | 44 | 4 | |
| 2227571 | 88 | 45 | 13 | 32 | 13 | 20 | 44 | 4 | |
| 3507198 | 86 | 45 | 10 | 38 | 20 | 24 | — | — | |
| 1173884 | 83 | 43 | 9 | 38 | 15 | 20 | — | — | |
| 3507198 | 88 | 44 | 14 | 36 | 24 | 20 | 44 | 4 | |
Reference Chart
* Other part no. not included in the list are available. Please contact your sales representative if you have any questions.
Part Numbers are used for reference purposes only
